Availability: | |
---|---|
| |
Solareast Heat Pump Ltd. offers a reliable and efficient R32 air-to-water heating and cooling system
R32 Refrigerant
Solareast has developed a three-in-one range of R32 air-to-water heat pumps for heating and cooling and domestic hot water. with its low carbon emissions and high efficiency.
So, why should you choose R32 refrigerant? Let's dive into the key benefits:
① Enhanced Energy Efficiency: R32 boasts a higher heat transfer coefficient, resulting in improved system efficiency and reduced energy consumption, perfect for eco-conscious users committed to sustainability.
② Lower Environmental Impact: With a lower Global Warming Potential (GWP) compared to other refrigerants, R32 helps minimize greenhouse gas emissions, supporting your efforts towards a greener future.
③ Enhanced Safety: Rest easy in the knowledge that R32 exhibits a lower flammability rating than alternative refrigerants, ensuring safety is prioritized in heat pump applications.
④ Compact Design: R32 enables the creation of smaller and lighter heat pump units, making them ideal for installations where space is limited, without compromising on performance.
⑤ Cost-Effectiveness: Embrace the practicality and affordability of R32, readily available and competitively priced. By choosing heat pumps utilizing this refrigerant, you can optimize your investment and enjoy long-term savings.

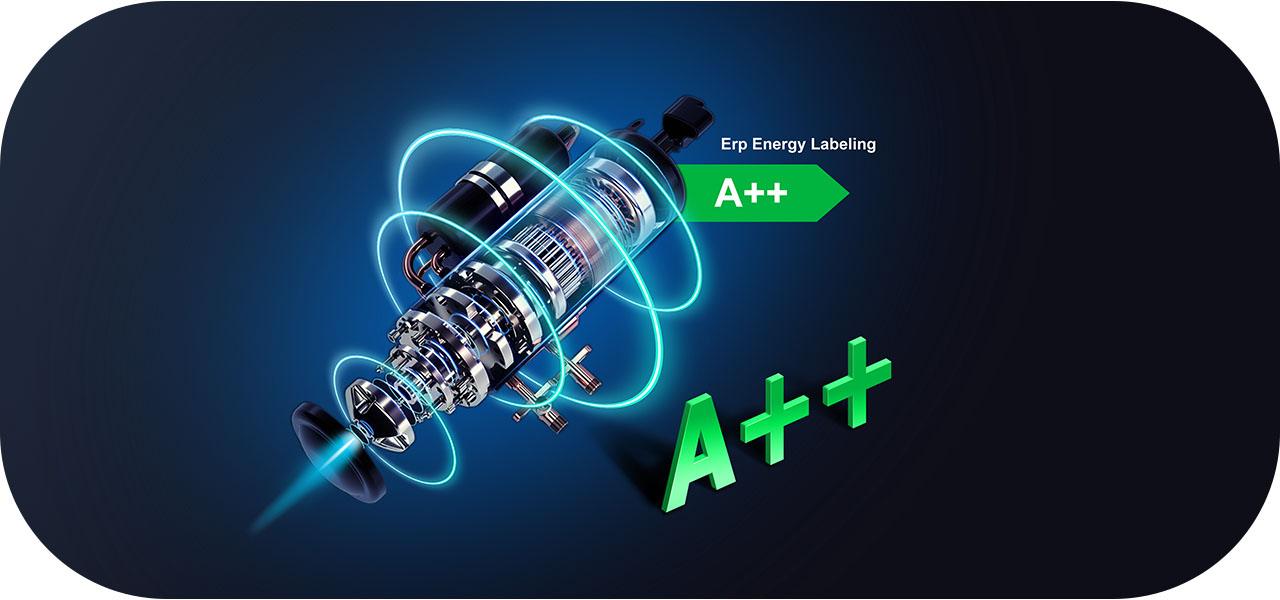

Efficiency A+++ Energy Level
The monoblock heat pump R32 has a modern design that successfully satisfies the exacting requirements for stability,quiet operation,and efficiency. It achieves the highly sought-after A+++ energy rating at a 25°C outlet water temperature and the maximum energy label rating of A+++ at 35°C outlet water temperature by using the eco-friendly R32 refrigerant and adding inverter technology.Consequently,consumers may take advantage of excellent performance at much lower energy expenditures.

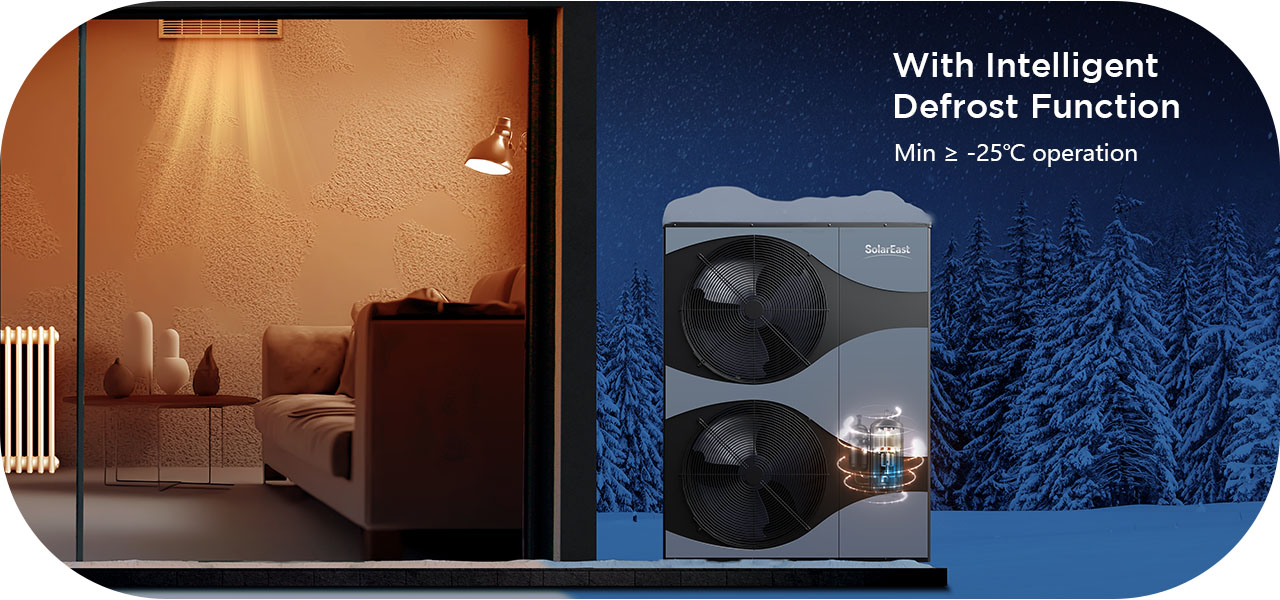

Stable Operation At -25°C
Reliability and environmental friendliness abound with the monoblock heat pump R32, which combines the use of R32 refrigerant with inverter technology to provide hot water and regulate temperature well, even in extremely cold climes (≥-25degree). Its sophisticated defrosting mechanism also guarantees reliable and efficient operation all year round.
Dual Temperature Zone
A dual temperature zone is a special feature of the Monoblock heat pump R32. You can effortlessly adjust the temperature settings in various sections of your living area thanks to this creative feature. With this heat pump, you can simultaneously set the room heater to a comfortable 55°C and set the floor heating in your living room to a cozy and comfortable 35°C.
Our Monoblock heat pump with dual temperature zone function guarantees a customized comfort experience, whether you prefer a slightly colder temperature in one area while keeping another area warmer or if you want to create a temperature contrast between different rooms.

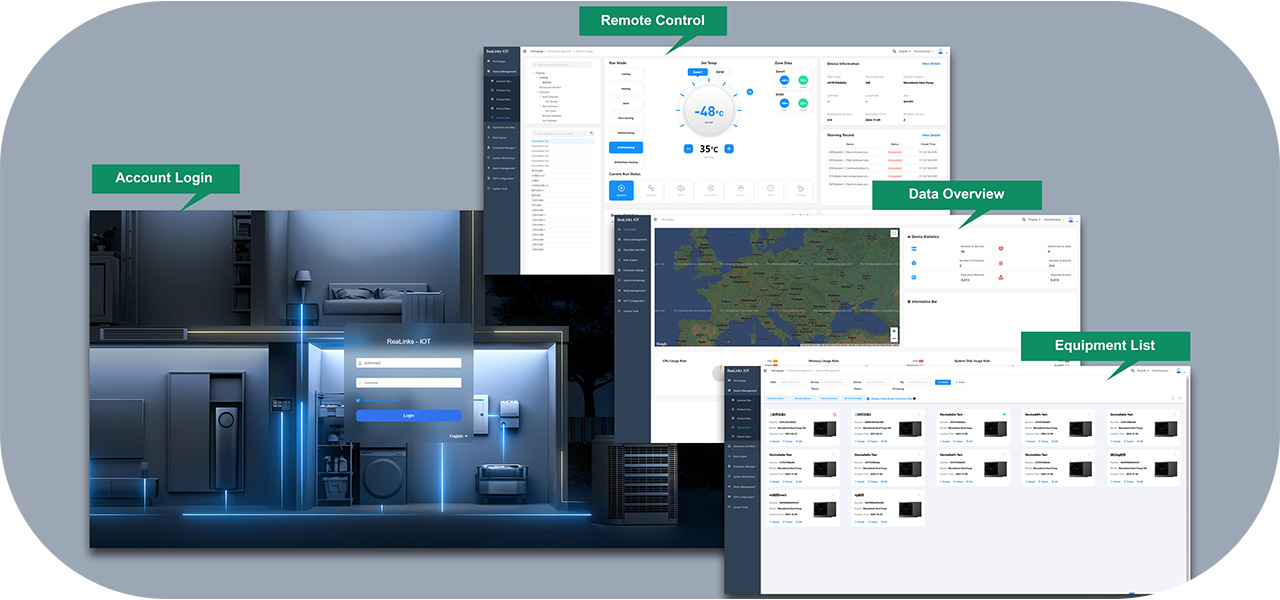

Efficient IoT Solution
The IoT customer management software from Solareast has the potential to drastically lower human costs for dealers. To facilitate remote data monitoring, it may be connected to a DUT or WiFi network. Additionally, it may be used to log all of the units' operating features and sync the data with dealer and manufacturer management records. If the heat pump has an error report, the dealer may quickly give customers the best fixes based on this information.
Noise control,no disturbances
The compressor stepless speed control of the monoblock heat pump R32 is used in testing and optimization to reach 1Hz frequency regulation with complete full DC technology. Additionally, the heat pump is wind-resistant thanks to stronger ABS blades. For its clients, Solareast is dedicated to establishing extremely quiet operation conditions.
5G/2.4G Compatible WIFI Module
With our cutting-edge air source heat pump, which comes with a 5G/2.4G Compatible WIFI Module, you can stay connected. You can control and keep an eye on your heat pump system from anywhere at any time with a smartphone or tablet. Enjoy the ease of changing settings, scheduling temperature adjustments, and receiving real-time notifications for optimal comfort and energy efficiency.
Cut Costs, Conserve Energy
The R32 air-to-water heat pump range is engineered to provide outstanding energy-saving advantages for home hot water production and heating. These pumps efficiently use the surrounding air to transfer heat to the water system, which lowers energy usage and saves a significant amount of money. Our air-to-water heat pumps provide economical and environmentally responsible heating options.
Monoblock heat pump R32 Installation Wiring Diagram
Certificates
CE(Conformité Européenne)
KEY MARK
ErP(Energy-Related Products)
BAFA
MCS
SG Ready
Solareast Heat Pump Ltd. offers a reliable and efficient R32 air-to-water heating and cooling system
R32 Refrigerant
Solareast has developed a three-in-one range of R32 air-to-water heat pumps for heating and cooling and domestic hot water. with its low carbon emissions and high efficiency.
So, why should you choose R32 refrigerant? Let's dive into the key benefits:
① Enhanced Energy Efficiency: R32 boasts a higher heat transfer coefficient, resulting in improved system efficiency and reduced energy consumption, perfect for eco-conscious users committed to sustainability.
② Lower Environmental Impact: With a lower Global Warming Potential (GWP) compared to other refrigerants, R32 helps minimize greenhouse gas emissions, supporting your efforts towards a greener future.
③ Enhanced Safety: Rest easy in the knowledge that R32 exhibits a lower flammability rating than alternative refrigerants, ensuring safety is prioritized in heat pump applications.
④ Compact Design: R32 enables the creation of smaller and lighter heat pump units, making them ideal for installations where space is limited, without compromising on performance.
⑤ Cost-Effectiveness: Embrace the practicality and affordability of R32, readily available and competitively priced. By choosing heat pumps utilizing this refrigerant, you can optimize your investment and enjoy long-term savings.
Efficiency A+++ Energy Level
The monoblock heat pump R32 has a modern design that successfully satisfies the exacting requirements for stability,quiet operation,and efficiency. It achieves the highly sought-after A+++ energy rating at a 25°C outlet water temperature and the maximum energy label rating of A+++ at 35°C outlet water temperature by using the eco-friendly R32 refrigerant and adding inverter technology.Consequently,consumers may take advantage of excellent performance at much lower energy expenditures.
Stable Operation At -25°C
Reliability and environmental friendliness abound with the monoblock heat pump R32, which combines the use of R32 refrigerant with inverter technology to provide hot water and regulate temperature well, even in extremely cold climes (≥-25degree). Its sophisticated defrosting mechanism also guarantees reliable and efficient operation all year round.
Dual Temperature Zone
A dual temperature zone is a special feature of the Monoblock heat pump R32. You can effortlessly adjust the temperature settings in various sections of your living area thanks to this creative feature. With this heat pump, you can simultaneously set the room heater to a comfortable 55°C and set the floor heating in your living room to a cozy and comfortable 35°C.
Our Monoblock heat pump with dual temperature zone function guarantees a customized comfort experience, whether you prefer a slightly colder temperature in one area while keeping another area warmer or if you want to create a temperature contrast between different rooms.
Efficient IoT Solution
The IoT customer management software from Solareast has the potential to drastically lower human costs for dealers. To facilitate remote data monitoring, it may be connected to a DUT or WiFi network. Additionally, it may be used to log all of the units' operating features and sync the data with dealer and manufacturer management records. If the heat pump has an error report, the dealer may quickly give customers the best fixes based on this information.
Noise control,no disturbances
The compressor stepless speed control of the monoblock heat pump R32 is used in testing and optimization to reach 1Hz frequency regulation with complete full DC technology. Additionally, the heat pump is wind-resistant thanks to stronger ABS blades. For its clients, Solareast is dedicated to establishing extremely quiet operation conditions.
5G/2.4G Compatible WIFI Module
With our cutting-edge air source heat pump, which comes with a 5G/2.4G Compatible WIFI Module, you can stay connected. You can control and keep an eye on your heat pump system from anywhere at any time with a smartphone or tablet. Enjoy the ease of changing settings, scheduling temperature adjustments, and receiving real-time notifications for optimal comfort and energy efficiency.
Cut Costs, Conserve Energy
The R32 air-to-water heat pump range is engineered to provide outstanding energy-saving advantages for home hot water production and heating. These pumps efficiently use the surrounding air to transfer heat to the water system, which lowers energy usage and saves a significant amount of money. Our air-to-water heat pumps provide economical and environmentally responsible heating options.
Monoblock heat pump R32 Installation Wiring Diagram
Certificates
CE(Conformité Européenne)
KEY MARK
ErP(Energy-Related Products)
BAFA
MCS
SG Ready
Model | BLN-006TB1 | BLN-010TB1 | BLN-010TB3 | BLN-014TB1 | BLN-014TB3 | BLN-018TB1 | BLN-018TB3 | BLN-024TB3 | ||
Power Supply | V/Ph/Hz | 220~240V/1/50 | 220~240V/1/50 | 380~415/3/50 | 220~240V/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | 380~415/3/50 | |
Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | kW | 2.50 ~ 8.30 | 4.20-12.20 | 4.20 ~ 12.20 | 5.30 ~ 16.50 | 5.30-16.60 | 6.20-20.50 | 6.20 ~ 20.50 | 6.50-26.10 |
Input Power | A | 2.53 ~ 8.52 | 3.82 ~ 12.77 | 1.46 ~ 4.89 | 5.10 ~ 18.41 | 1.86 ~ 6.70 | 1.36 ~ 5.28 | 1.36 ~ 5.28 | 1.78 ~ 6.45 | |
Current Input | kW | 0.57 ~ 1.92 | 0.86 ~ 2.88 | 0.86 ~ 2.88 | 1.15 ~ 4.15 | 1.15 ~ 4.15 | 6.10 ~ 23.67 | 2.31 ~ 8.96 | 2.87 ~ 10.35 | |
COP | W/W | 4.32 ~ 5.86 | 4.23 ~ 5.39 | 4.23 ~ 5.39 | 3.97 ~ 5.43 | 3.97 ~ 5.43 | 3.88 ~ 5.21 | 3.88 ~ 5.21 | 4.04 ~ 5.43 | |
Nominal Heating (Max) (A7/6℃,W47/55℃) | Heating Capacity | kW | 2.30 ~ 7.62 | 3.85 ~ 11.20 | 3.85 ~ 11.20 | 4.90 ~ 15.10 | 4.90 ~ 15.10 | 6.30 ~ 19.90 | 6.30 ~ 19.90 | 6.90 ~ 26.10 |
Input Power | kW | 0.75 ~ 2.61 | 1.13 ~ 3.75 | 1.13 ~ 3.75 | 1.65 ~ 5.25 | 1.65 ~ 5.25 | 1.65 ~ 6.82 | 1.65 ~ 6.82 | 1.95 ~ 8.55 | |
Current Input | A | 3.32 ~ 11.58 | 5.01 ~ 16.6 | 1.92 ~ 6.37 | 7.32 ~ 23.30 | 1.67 ~ 8.47 | 7.40 ~ 30.56 | 2.80 ~ 11.58 | 3.15 ~ 13.80 | |
COP | W/W | 2.92 ~ 3.33 | 2.99 ~ 3.46 | 2.99 ~ 3.46 | 2.87 ~ 3.38 | 2.87 ~ 3.38 | 2.91 ~ 3.34 | 2.91 ~ 3.34 | 3.05 ~ 3.42 | |
Nominal Cooling (Max) (A35/24℃,W12/7℃) | Cooling Capacity | kW | 1.80 ~ 7.10 | 2.60 ~ 10.30 | 2.60 ~ 10.30 | 4.50 ~ 13.50 | 4.50 ~ 13.50 | 5.50 ~ 17.50 | 5.50 ~ 17.50 | 5.20 ~ 21.30 |
Power Input | kW | 0.61 ~ 2.43 | 0.91 ~ 3.65 | 0.91 ~ 3.65 | 1.45 ~ 4.85 | 1.45 ~ 4.85 | 1.65 ~ 6.25 | 1.65 ~ 6.25 | 1.95 ~ 8.20 | |
Current Input | A | 2.71 ~ 10.78 | 4.03 ~ 16.19 | 1.55 ~ 6.20 | 6.43 ~ 21.52 | 2.34 ~ 7.82 | 7.40 ~ 28.02 | 2.80 ~ 10.61 | 3.15 ~ 13.23 | |
EER | W/W | 3.04 | 3 | 3 | 2.87 | 2.87 | 2.96 | 2.96 | 2.92 | |
ERP Level(Outlet water temp. at 35℃) | / | A+++ | ||||||||
ERP Level(Outlet water temp. at 55℃) | / | A++ | ||||||||
Rated Input Power | kW | 2.71 | 3.83 | 3.83 | 6.2 | 6.2 | 7.50 | 7.50 | 10.0 | |
Rated Input Current | A | 12 | 17 | 6.5 | 27.5 | 10.5 | 35.0 | 313.0 | 17.0 | |
Refrigerant Type / Charge / GWP | .../kg | R32/1.25/675 | R32/1.8/675 | R32/1.8/675 | R32/2.8/675 | R32/2.8/675 | R32/3.5/675 | R32/3.5/675 | R32/3.5/675 | |
Rated water flow | m³/h | 1.1 | 1.75 | 1.75 | 2.52 | R32/2.8/675 | 3.20 | 3.20 | 4.12 | |
Fan quantity | / | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
Fan motor type | / | DC inverter | ||||||||
Compressor | / | Panasonic / DC inverter / Rotary / EVI | ||||||||
Circulating pump | / | Inverter type / Built-in | ||||||||
IP Class | / | IPX4 | ||||||||
Sound pressure at 1m distance | dB(A) | 49 | 52 | 52 | 53 | 54 | 56 | 55 | 58 | |
Max outlet water temperature | ℃ | 60 | ||||||||
Water piping connections | inch | G1 | G1 | G1 | G1-1/4 | G1-1/4 | G1-1/2 | G1-1/2 | G1-1/2 | |
Pressure drop at rating water flow | kPa | 25 | 27 | 27 | 30 | 30 | 32 | 32 | 35 | |
Operating temperature range (Heating mode) | ℃ | -25~45 | ||||||||
Operating temperature range (Cooing mode) | ℃ | 16~45 | ||||||||
Unpacked Dimensions ( L×D×H ) | mm | 1100*445*850 | 1100*445*850 | 1100*445*850 | 1100*480*850 | 1100*480*850 | 1110*445*1450 | 1110*445*1450 | 1110*445*1450 | |
Packed Dimensions ( L×D×H ) | mm | 1160*530*1010 | 1100*445*850 | 1100*445*850 | 1160*530*1010 | 1160*530*1010 | 1170*530*1610 | 1170*530*1610 | 1170*530*1610 | |
UnPacked Weight | kg | 102 | 107 | 107 | 124 | 124 | 151 | 151 | 160 | |
Packed Weight | kg | 114 | 119 | 119 | 136 | 136 | 168 | 168 | 177 |
* Please refer to the nameplate for product upgrades or changes in specifications without prior notice.
